STK data

A short overview of the STK data in MFRI database
code
rtip
Author

Einar Hjörleifsson

Published

July 8, 2025

Code
library(mar)
library(tidyverse)
library(duckdbfs)
source(here::here("R/ramb_functions.R"))
con <- connect_mar()
trail <- tbl_mar(con, "stk.trail")
mobile <-
  tbl_mar(con, "stk.mobile") |>
  collect() |>
  janitor::remove_empty(which = "cols") |>
  janitor::remove_constant()

The trail (main) table

A quick spatial view:

Code
dx <- 0.05
dy <- dx / 2
open_dataset(here::here("data/ais/stk-raw")) |>
  mutate(x = lon %/% dx * dx + dx/2,
         y = lat %/% dy * dy + dy/2) |>
  group_by(x, y) |>
  summarise(n = sqrt(n())) |>
  collect() ->
  g
g |>
  filter(between(x, -40, 20),
         between(y,  50, 70)) |>
  mutate(n = ifelse(n > 50, 50, n)) |>
  ggplot(aes(x, y, fill = n)) +
  theme_bw() +
  geom_tile() +
  scale_fill_viridis_c(option = "inferno", direction = +1) +
  coord_quickmap() +
  labs(x = NULL, y = NULL)

Basically we get:

  • All Icelandic vessels
  • All foreign vessels within a specified area (at minimum the Icelandic EEZ)

The variables in the trail table:

Code
trail |> glimpse()
Rows: ??
Columns: 15
Database: OraConnection
$ trailid          <dbl> 55255329, 55255330, 55255331, 55255332, 55255333, 552…
$ mobileid         <dbl> 100628, 100674, 104493, 105821, 106928, 100783, 10280…
$ msgtype          <int> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,…
$ comsystemid      <dbl> 100, 100, 100, 100, 100, 100, 100, 100, 100, 100, 100…
$ poslat           <dbl> 1.153216, 1.110839, 1.130719, 1.135345, 1.152691, 1.1…
$ poslon           <dbl> -0.3255472, -0.3701645, -0.2445304, -0.3969178, -0.40…
$ speed            <dbl> 0.00000000, 0.92599998, 4.52711111, 0.00000000, 0.000…
$ heading          <dbl> 0.0000000, 3.7088247, 0.1658063, 0.0000000, 0.0000000…
$ altitude         <dbl> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, N…
$ status           <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,…
$ posdate          <dttm> 2010-09-22 11:59:27, 2010-09-22 11:59:27, 2010-09-22…
$ moddate          <dttm> 2010-09-22 11:59:29, 2010-09-22 11:59:29, 2010-09-22…
$ recdate          <dttm> 2010-09-22 11:59:29, 2010-09-22 11:59:29, 2010-09-22…
$ in_out_of_harbor <chr> "I", NA, "I", NA, NA, NA, NA, NA, NA, NA, NA, NA, NA,…
$ harborid         <chr> "OF", NA, "BRK", NA, NA, NA, NA, NA, NA, NA, NA, NA, …

The following variables are constant or empty:

  • comsystemid
  • msgtype
  • altitude
  • status

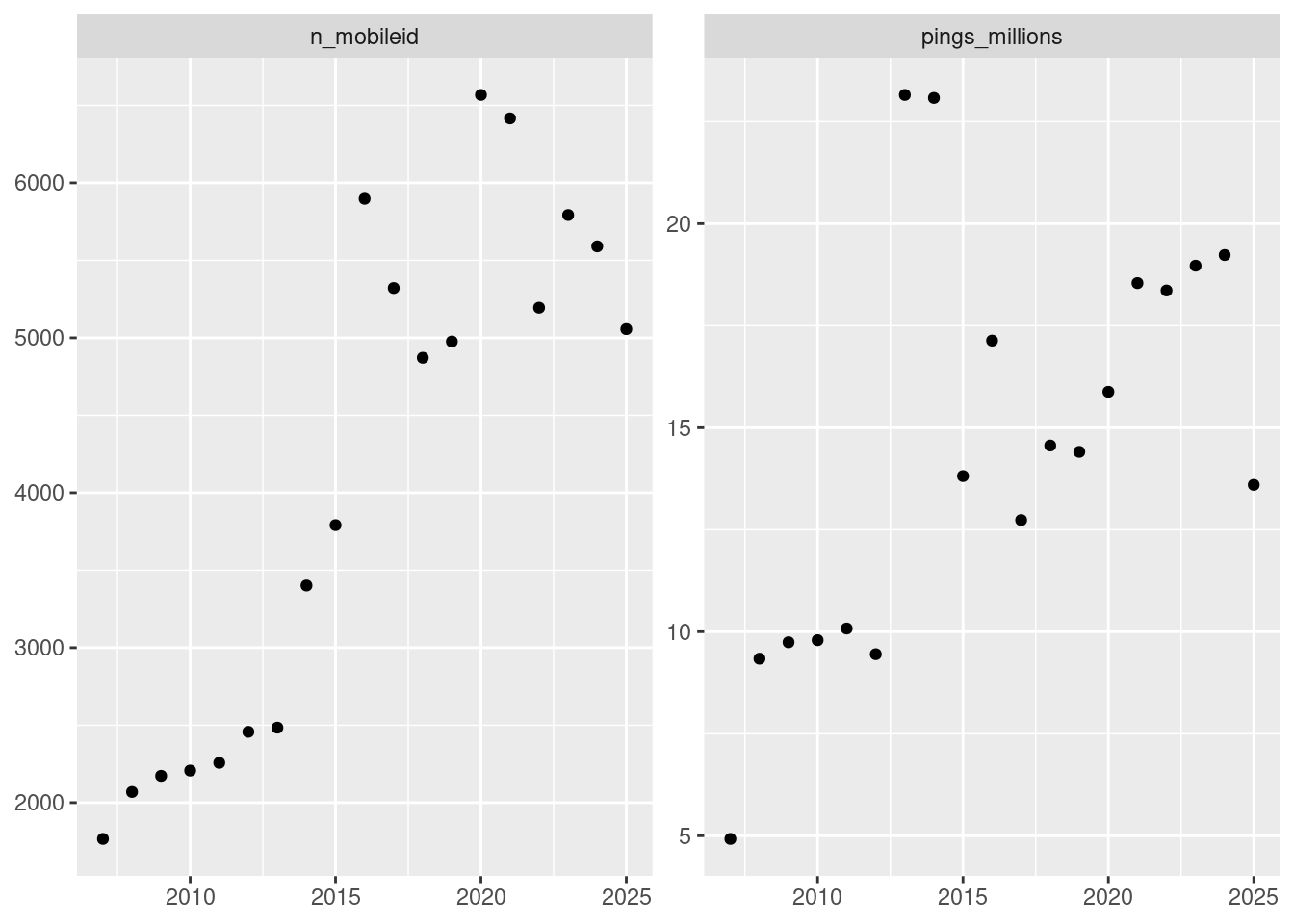

The number of records and distinct mobileid by year is as follows:

Code
trail |>
  mutate(year = year(posdate)) |>
  filter(between(year, 2007, 2025)) |>
  group_by(year) |>
  summarise(pings_millions = n() / 1e6,
            n_mobileid = n_distinct(mobileid),
            .groups = "drop") |>
  collect() |>
  gather(var, val, -year) |>
  ggplot(aes(year, val)) +
  geom_point() +
  facet_wrap(~ var, scales = "free_y") +
  labs(x = NULL, y = NULL)

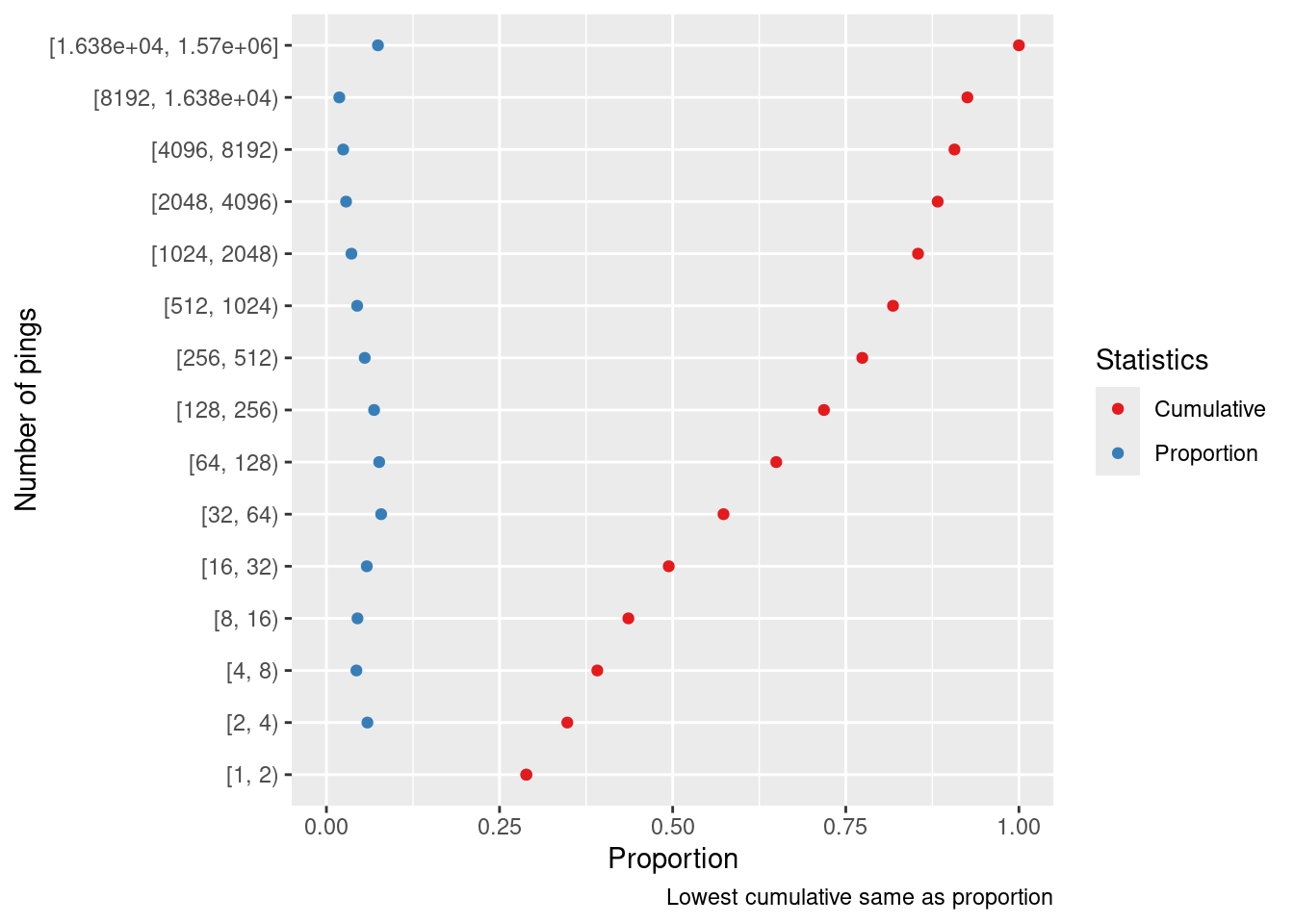

Code
trail |>
  group_by(mobileid) |>
  summarise(n = n(),
            .groups = "drop") |>
  collect() |>
  arrange(n) ->
  d

d |>
  mutate(chop = santoku::chop(n, breaks = 2^(0:floor(log(20000, 2))))) |>
  count(chop) |>
  mutate(Proportion = n / sum(n),
         Cumulative = cumsum(Proportion)) |>
  select(chop, Proportion, Cumulative) |>
  gather(var, val, -chop) |>
  ggplot(aes(val, chop, colour = var)) +
  geom_point() +
  labs(x = "Proportion", y = "Number of pings", colour = "Statistics",
       caption = "Lowest cumulative same as proportion") +
  expand_limits(x = 0) +
  scale_colour_brewer(palette = "Set1")

Whats this mobile?

Here we will explore the mobile-table:

Code
mobile |> glimpse()
Rows: 31,934
Columns: 9
$ mobileid     <dbl> 100602, 100603, 100604, 100605, 100606, 100607, 100608, 1…
$ name         <chr> "@", "@", "@", "@", "@", "@", "@", "@", "@", "@", "@", "@…
$ localid      <chr> "7070", "483", "6403", "1627", "2909", "6890", "6697", "9…
$ globalid     <chr> "7070", "TFEG", "6403", "TFBP", "TFRH", "6890", "6697", "…
$ contactdate  <dttm> 2003-08-26 15:34:05, 2003-08-26 15:34:05, 2003-08-26 15:…
$ registration <dttm> 2003-08-26 15:34:05, 2003-08-26 15:34:05, 2003-08-26 15:…
$ description  <chr> " ", " ", " ", " ", " ", " ", " ", " ", " ", " ", " ", " …
$ moddate      <dttm> 2003-08-26 15:34:05, 2003-08-26 15:34:05, 2003-08-26 15:…
$ recdate      <dttm> 2003-08-26 15:34:05, 2003-08-26 15:34:05, 2003-08-26 15:…

So we basically have:

  • ~31000 records
  • The mobileid consitutes a unique combination of localid-globalid
  • 4 datetime variables!

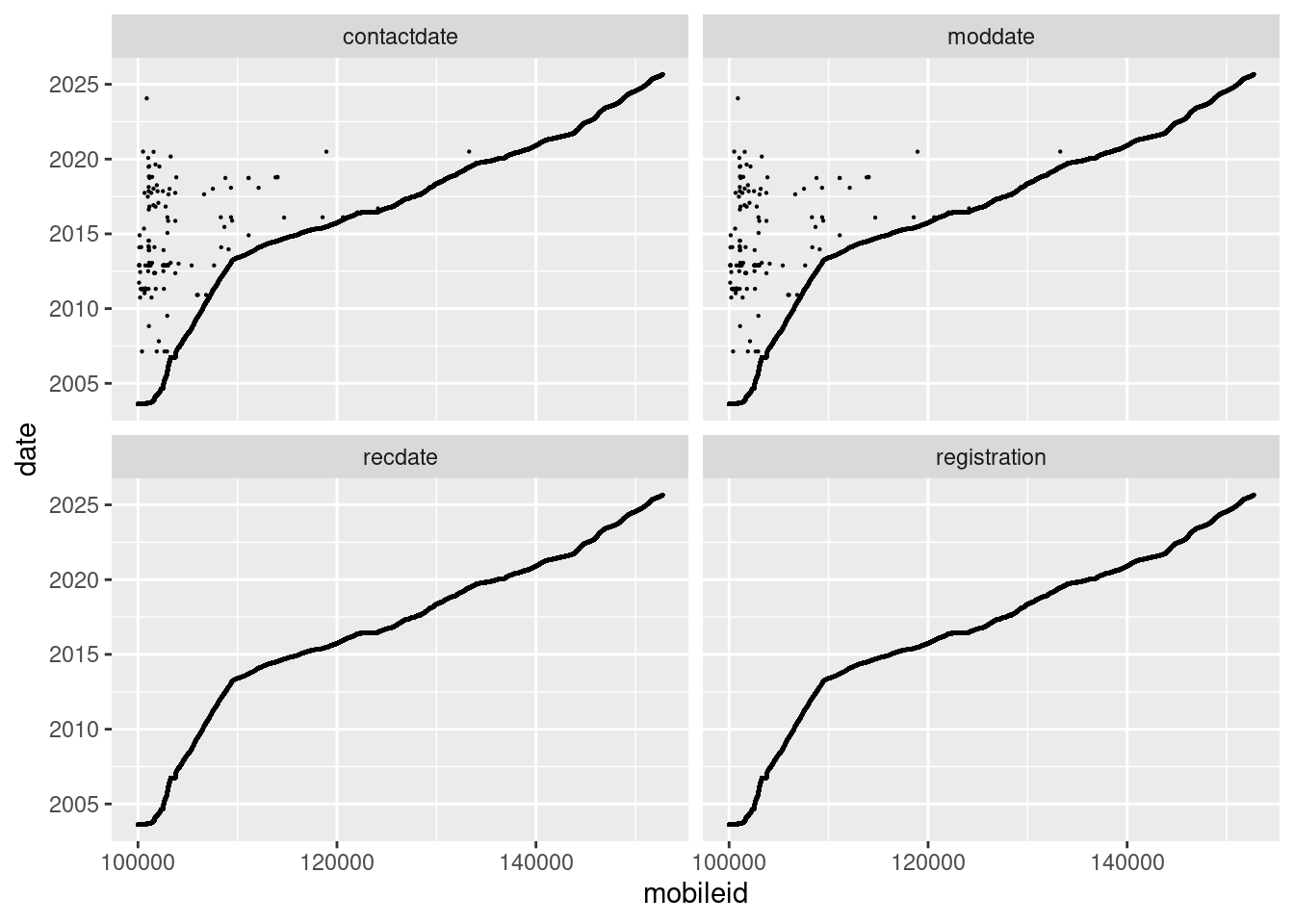

Plotting the 4 datetimes against the sequential numerical value of mobileid we get:

Code
mobile |>
  select(mobileid, contactdate, registration, moddate, recdate) |>
  gather(var, date, -mobileid) |>
  ggplot(aes(mobileid, date)) +
  geom_point(size = 0.1) +
  facet_wrap(~ var)

So essentially the mobileid seems to be a sequential numerical that gets incremented each time a new localid-globalid record “enters the system”.

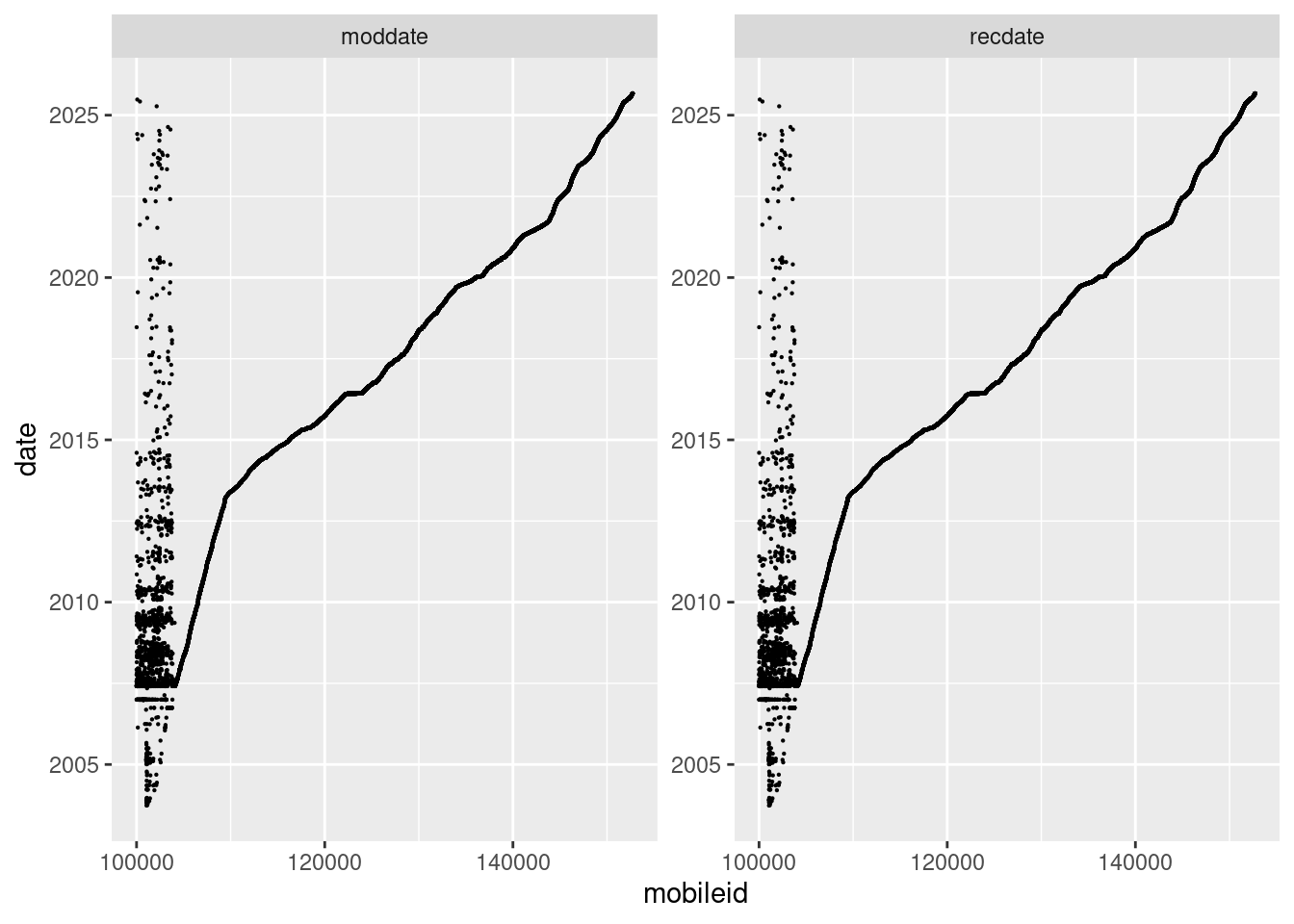

Doing similar checks things using the detail (trail) table:

Code
# Note: moddate is always the same as recdate
# trail |> filter(moddate != recdate)
trail |> mutate(diff = case_when(recdate == moddate ~ "same",
                                 recdate > moddate ~ "bigger",
                                 recdate < moddate ~ "smaller",
                                 .default = "something else")) |>
  count(diff)
# Source:   SQL [?? x 2]
# Database: OraConnection
  diff            n
  <chr>       <dbl>
1 same    276795966
2 smaller     29537
Code
trail |>
  group_by(mobileid) |>
  summarise(recdate = min(recdate),
            moddate = min(moddate),
            .groups = "drop") |>
  collect() |>
  gather(var, date, -mobileid) |>
  ggplot(aes(mobileid, date)) +
  geom_point(size = 0.1) +
  facet_wrap(~ var, scales = "free_y")

What type of values does globalid have?

Code
MID <-
  nanoparquet::read_parquet(here::here("data/auxillary/maritime_identification_digits.parquet")) |>
  # used for classifying likely incomplete mmsi-signals
  mutate(MID_child = paste0("98", MID),
         MID_aid = paste0("99", MID))
## Call sign prefix - flag state
cs.prefix <-
  nanoparquet::read_parquet(here::here("data/auxillary/callsign_prefix.parquet")) |>
  # critical, lot of mess with TF in stk localid and globalid
  filter(cs_prefix != "TF")
fixed <-
  c("Surtseyja", "Straumnes", "Steinanes", "Haganes_K", "Bakkafjar",
    "Laugardal", "BorgfjE P", "Gemlufall", "Straumduf", "Eyrarhlid",
    "Hvalnes", "Straumm?l", "V_Blafj P", "Isafj.dju", "Rey?arfjo",
    "VidarfjAI", "KLIF AIS",  "VadlahAIS", "Hafell_AI", "TIND_AIS",  "Storhof?i",
    "Helguv", "Laugarb.f", "Grimseyja", "G.skagi",   "Grindavik", "Hornafjar",
    "Flateyjar", "Kogurdufl", "Blakkur.d", "Bakkafjor", "Hvalbakur", "SUGANDI_A",
    "TJALDANES",  "Snaefj1",
    "Snaefj2", "Lande", "Sjomsk", "TJALD.NES", "illvid_p", "BLAKKSNES", "V_Sfell B",
    "HOF", "Illvi?rah", "Miðfegg P", "BASE11", "Borgarfj ",
    "V_Hofsos", "V_Hofsos ", "Arnarfjor", "Trackw", "SUGANDAFJ",
    "BORGARÍS", "BORGARIS", "BORGARIS0", "BORGARIS1",
    "ThverfAIS",
    "TEST",
    "Hvannadal", "Tjaldanes", "BorglAIS", "HvalnAIS", "Midf_AIS",
    "Hellish A", "GreyAIS", "Berufjor?",
    "Baeir", "Frodarh_A", "Onundarfj", "HusavikAI", "Haukadals",
    "Drangsnes", "Hofdahusa", "Djupiv-AI", "Dyrafjor?", "Faskru?sf",
    "Fossfjor?", "Hvestudal", "Hringsdal", "Bakkafj-d", "Mulagong",
    "Grnipa P", "Haenuvk P", "Bolafj P", "Ennish P", "Grimsey P",
    "Frodarh P", "Haoxl B", "Hafell P", "Vidarfj P", "Djupiv P",
    "Blafj P", "Sigmundar", "Tjnes P", "Sfell P", "Hellish P",
    "Gvkurfj P", "Klif P", "Thverfj B", "Klif B", "Grimsey B",
    "Frodarh B", "Hvalnes P", "Haoxl P", "Grnipa B", "Illvidh P",
    "FLATEYRI_", "Hellish B", "Husavik B", "Hofsos P", "Faskra?sf",
    "Husavik P", "Tjornes P", "Thorbj B", "Borgarh-P", "Baeir B",
    "VadlahP", "Thverfj P", "Dalvik P", "Godat-P", "HafellAIS",
    "Bjolfur P", "Ennish B", "Thorbj P", "Hraunh P", "Gufusk P",
    "Lambhgi P", "Fri?rik A", "Baeir P", "Flatey du", "Fellsgg1P",
    "Fellsgg2P", "Akurtr B", "Midfell-P", "Horgargru", "Borgarl P",
    "Haenuvk B", "Gagnhdi P", "Hvalnes B", "HVestudal", "Gildruh B",
    "Sfell B", "Gagnhdi B", "BorgfjE B", "Spolur-P", "Klakkur P",
    "KOLBEINSE", "Stykkh P", "Tjnes B", "Kvigindis", "Dufl_GRV_",
    "Fell P", "Steinny-P", "Stokksn P", "Tjorn P", "Kopasker",
    "Akreyri P", "Grima P", "Dalatgi B", "ThverfjP", "Rifssker_",
    "Dalatgi P", "Tjorn B", "Kolmuli_K", "Vattarnes", "Thorbjorn",
    "Husavik", "Hafranes_", "Drangaj_P", "Hrisey", "Hofsos",
    "Midfegg P", "Midf P", "Gufunes P", "Mi?fegg P", "Dalvík P",
    "Dalvik", "Borgfj E", "Straumn-A", "Talknaf P",
    "Steinny", "TILK", "ThverfjP1", "Heidar-P", "Vadlaheid",
    "Talknaf B", "BLAKK_AIS", "Mork-P", "VPN_Bauja",
    "PF7567", "Daltat", "AEDEY AIS", "Borgfj E",
    # should really use the mobile id here, at least it is easier
    #  because that is how things are checked iteratively
    "2515036", "2311200", "2311400", "2573900", "2311500",
    "2515071", "25150051", "2314000",
    "251510120",    # Skipstjóraskólinn
    "231140005",
    "231140003",
    "251999898",
    "231140004",
    "231140006",
    "231140001",
    "231140002",
    "251513130",
    "xxx5",
    "103984",
    "Borgfj E",
    "Borgfj E ",
    "BLAKK_OLD",
    "Gufunes B",
    "Blondos P",
    "Mork P",
    "Va?lahei?"
  )
kvi <-
  c("Eyri_Kvi_", "Kvi_Skotu", "Kvi_Baeja", "Bjarg_Kvi", "Sjokvi-4", "Sjokvi-3",
    "Kvi-0 Hri", "Sjokvi-2", "Kvi_Sande", "Kvi_Fenri", "Sjokvi",
    "Y.Kofrady")
hafro <-
  c("Hafro_Str", "Hafro_O2_", "Hafro_CO2", "Hafro_H11", "Hafro_H20", "Hafro_Hva",
    "Hafro_duf", "AfmHafro_", "Afm_Hafro", "Hafro_W.V", "Hafro_W.V ", "afm_Hafro",
    "Rannsokn_")
v_drop_na <- function(x) {
  x[!is.na(x)]
}
v <-
  nanoparquet::read_parquet(here::here("data/vessels/vessels_iceland.parquet"))
mobile |>
  left_join(trail |> count(mobileid, name = "pings") |> collect()) |>
  rename(g = globalid) |>
  filter(!is.na(g)) |>
  mutate(
    type =
      case_when(is.na(pings) ~ "no trail",
                g %in% fixed ~ "fixed",
                g %in% kvi ~ "kvi",
                g %in% hafro ~ "hafro",
                g %in% v_drop_na(v$cs) ~ "cs_isl",
                g %in% v_drop_na(v$mmsi) ~ "mmsi_isl",
                g %in% v_drop_na(v$uid) ~ "uid_isl",
                str_sub(g, 1, 2) %in% cs.prefix$cs_prefix &
                  !numbers_only(str_trim(g)) &
                  !str_starts(g, "MOB_")  ~ "cs",
                numbers_only(g) & str_sub(g, 1, 5) %in% MID$MID_child ~ "mmsi_child",
             numbers_only(g) & str_sub(g, 1, 5) %in% MID$MID_aid ~ "mmsi_aid",
             numbers_only(g) & nchar(g) == 9 ~ "mmsi",
             g == localid & g %in% as.character(v_drop_na(v$vid)) ~ "vid-vid",
             tolower(localid) %in% c("unkown", "unknown") & g %in% as.character(v_drop_na(v$vid)) ~ "unknown-vid",
             str_sub(g, 1, 4) %in% v_drop_na(v$cs) & str_detect(toupper(g), "NET") ~ "cs_NET",
             str_sub(g, 1, 4) %in% v_drop_na(v$cs) & str_ends(g, "2") ~ "cs_2",
             str_sub(g, 1, 4) %in% as.character(v$vid) & str_detect(toupper(g), "NET") ~ "vid_NET",
             str_sub(g, 1, 2) %in% cs.prefix$cs_prefix ~ "cs_prefix",

                .default = "something else")) |>
  count(type) |>
  arrange(-n) |>
  knitr::kable(caption = "Non-exhaustive classification of globalid - number of observations")
Non-exhaustive classification of globalid - number of observations
type n
mmsi 17110
cs 5679
something else 2178
vid-vid 2126
mmsi_aid 1238
no trail 1068
cs_isl 899
mmsi_child 767
fixed 210
mmsi_isl 173
unknown-vid 162
vid_NET 149
cs_NET 128
cs_2 22
hafro 12
kvi 12
